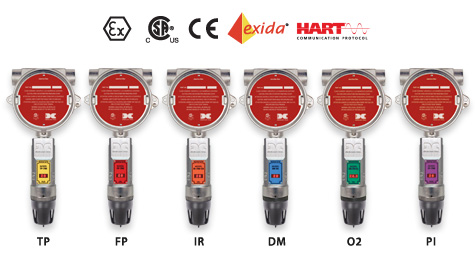

Detcon Model Series 700 Gas Detection Sensors






"Environmentally Bulletproof"
• Water-Proof
• Corrosion-Proof
• Vibration-Proof
• Multi-Layer Surge Protection
• Pre-emptive Fault Diagnostics



Detcon Model Series 700 industrial gas detection sensors are a new generation of intelligent sensor modules that incorporate and integrate several leading edge improvements. The sensors are specifically designed for harsh and extreme locations. This new and superior level of environmental durability in sensor design includes an electropolished 316 stainless steel housing, multi-layered transient spike protection circuitry and 100% encapsulated electronics. The sensor electronics are completely protected and immune to water ingress and corrosion. The gas detector sensor elements are all plug-in components and can easily be replaced in the field. Operator interface is non-intrusive via a small handheld magnet. Configuration and routine calibration is intuitive and menu driven with fully scripted instructions. Sensor status is displayed on a built-in alphanumeric LED display. Model Series 700 intelligent sensor modules feature dual redundant outputs, a linear 4-20 milliamp analog signal and a Modbus RS-485 serial output.

Electrical Classification (FP, TP, IR Series)
Class I, Div 1, Groups B, C, D; Class I, Zone 1, Group IIB+H2 (ATEX)


Electrical Classification (DM, O2, PI Series)
Class I, Div 1, Groups A, B, C, D; Class I, Zone 1, Group IIC (ATEX)

Safety Approvals
CSA/NRTL (US OSHA Certified)
ATEX
SIL2

Integration Solutions Include:
• Remote Control/Alarm Relay Module
• Hart Module
• Profibus Module
• Foundation Fieldbus Module
• Wireless Interface Module

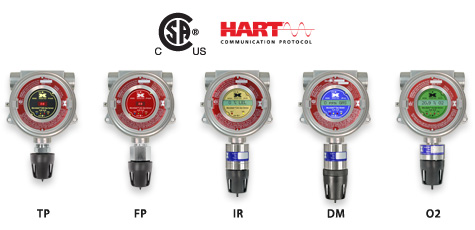

Detcon MicroSafe™ Gas Detection Sensors


"Intuitive Diagnostic Intelligence"
• Intuitive Non-intrusive Operator Interface
• Modular Plug & Play Sensors & Transmitters
• Simple Menu-driven Calibration & Programming
• Integral Sensor Fault Diagnostics

Two Models to Choose From
• Model 500: 4-20mA
• Model 600: 4-20mA, Modbus RTU, Alarm Relays



Detcon MicroSafe™ Series intelligent gas detection sensors feature Detcon's MicroSafe™ intuitive software. Operator interface is non-intrusive using a hand-held magnet and program switches accessed through a glass lens cover. Calibration instructions appear in simple interactive and sequential script on a 16-character backlit alphanumeric display. The transmitter design incorporates extensive fault diagnostics with each condition conveniently identified on the transmitter display. The gas detector sensor elements and transmitters are plug-in components and can easily be replaced in the field.

Model Series 500 comes standard with a linear 4-20 mA output, one-man remote calibration, self-adjusting zero and span, and LED indicators for fault and calibration status.

Model Series 600 includes the same features as the 500 with the addition of 3 alarm relays and an RS-485 serial communications port.

Electrical Classification - Explosion proof
Class I, Div 1, Groups B, C, D

Safety Approvals
cCSAus/NRTL (US OSHA Certified)
ATEX (TP Series Solid State H2S only)


Detcon Model 100 Gas Detection Sensors


"Simple, Affordable, Durable"

• 2-Wire Loop Powered
• Wide Range of Toxic Sensors + Oxygen
• XP-Intrinsically Safe design
• Non-Intrusive Interface
• 4-20 Milliamp Output
• Class I, Division 1, Groups B,C,D
• Integral Sensor Fault Diagnostics
• Fully encapsulated electronics



Detcon Model 100 Series sensors feature intelligent electronics, non-intrusive operator interface and comprehensive fault diagnostics. The sensor is packaged in an electro-polished 316 stainless steel housing fitted with a ¾ inch NPT thread. The plug-in, field replaceable sensor features large surface area gold-plated pins that reduce the effects of corrosion in harsh industrial environments. Signal conditioning electronics are completely encapsulated in the sensor housing adding a high level of durability to the design. The packaging is Explosion Proof (Class I, Div. 1 Groups B, C, D). Model 100 is equiped with a standard analog 4-20 mA current signal equivalent to the sensor range of detection. Upper enclosure options are aluminum and stainless steel (includes a transient protection terminal board). Additional accessories include wireless communications, a loop powered digital display, Remote Alarm Module (RAM), HART, and a current to RS-485 converter. The standard serial converter is Modbus RTU. Each sensor is shipped with a splash guard with integral calibration port.

Model DM-100 provides a wide range of toxic gas sensors and oxygen that uses electrochemical technology.

Electrical Classification
NEMA 4X Class 1, Div. 1, Groups B, C, & D

Safety Approvals
cCSAus/NRTL (US OSHA Certified)
ATEX
CE Marking

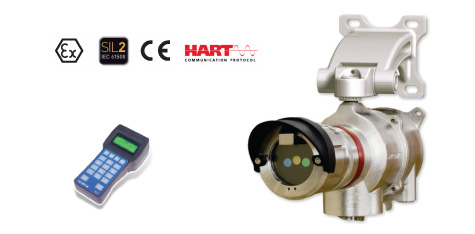

MultiFlame Flame Detectors

• Continuous auto-check of optical lens
• Selectable sensitivity and time delays
• Wireless detector configuration and testing using TLU
• HART® output option available

Two Models to Choose From
• DF-TV7-T: Multi-spectrum IR Flame Detector (3 wavelengths)
• DF-TV7-V: Multi-spectrum UV/2IR Flame Detector (UV + dual IR)

The MultiFlame DF-TV7-T is a multi-spectrum infrared flame detector using three wavelengths to respond to hydrocarbon fires and is the right choice for operation in dirty environments or for detection of smoky fires.The MultiFlame DF-TV7-V is a combined ultraviolet/infrared flame detector offering excellent long range detection. Both maintain outstanding false alarm immunity, are suitable for use in SIL2 applications and are configurable using a hazardous area approved wireless hand held terminal (TLU).

Electrical Classification
II 2 G Ex d II C T6 Gb (-40°C to +65°C)

Safety Approvals
SIL (pending)
ATEX
CE Marking (pending)

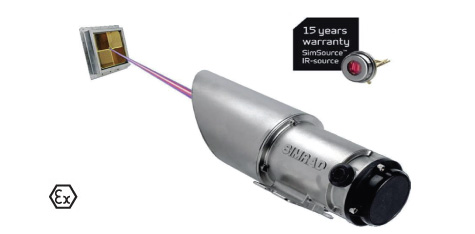

GD10L Open Path Infrared Hydrocarbon Detector


15 Year IR Sources Warranty

• Enhanced coverage requires fewer devices
• Ultra stable & long life solid state IR sources
• Heated retro reflector minimises icing and condensation
• Path lengths from 6.5 to 100 feet



The GD10L provides an effective response to the detection of gas hazards in a wide range of industrial environments from boiler plant rooms to offshore petrochemical installations.

Electrical Classification
ATEX 2 II G EExde IIC T6 (-40°C to +65°C)

Safety Approvals
ATEX

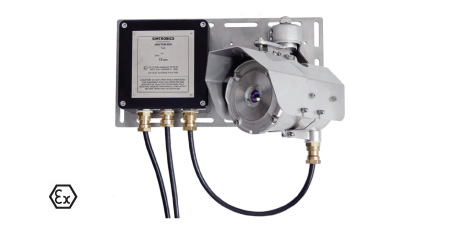

GD1 Laser Open Path H2S Gas Detector


Fastest Possible Speed of Response

• No sensor recalibration or replacement
• Superior detector stability and specificity
• Suitable for use in SIL 2 systems



The GD1 sets a new standard for toxic gas detection. Using a tuneable laser diode the GD1 delivers enhanced coverage and fail safe detection. The performance improvement marks a genuine step change for safety systems and life cycle cost savings. At the heart of the detector is a tuneable laser diode that eliminates environmental effects from sun, rain and fog. The laser scans single absorption lines where there is no interference from other gases. Unlike traditional methods for detecting H2S (MOS or EC cell) the GD1 needs no recalibration and can replace multiple standard detectors to cover the same risk.

Electrical Classification
Ex II 2 G Ex e IIC T4/T5/T6

Safety Approvals
ATEX
SIL

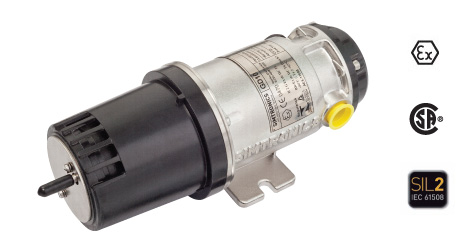

DG10 Series IR Point Gas Detectors


For Combustible Gas and Carbon Dioxide

• Fast Reliable Response
• No Field Recalibration
• Solid State IR-Source



The DG10 Series uses state of the art IR gas measurement to give a fast, reliable response. The GD10P has set the standard for gas detection in the areas of safety, stability and low maintence. The GD10 differs from all other point infrared gas detectors, because it utilises silicon based solid-state sources. The complete optomechanical design and constructions is so stable that an ultra fast speed of response can be achieved whilst providing unparalleled service life and detector stability, thus saving on maintenance and service costs. The GD10 offers the longest combined detector and IR source warranty on the market. And is supplied with worldwide hazardous area approvals. Suitable for use in SIL 2 systems. An industry standard HART interface is used for configuration of special fault levels as well as access to extended maintenance data.

Electrical Classification
EExd IIC T6

Safety Approvals
ATEX
CSA
INMETRO
ABS
SIL

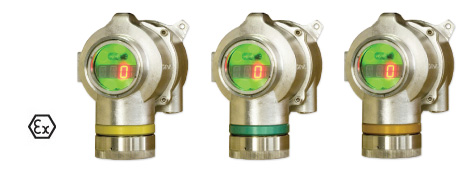

DG Series Gas Detectors


Backlit Display

• Flexible Configuration
• Reduced Maintenance
• Local Display



The DG Series gas detectors are constructed from a common housing and consist of the MultiTox Electrochemical for toxic gases, the MultiXplo Catalytic for flammable gases and the MultiTox Solid State MOS for hydrogen sulfide.The intelligent, microprocessor driven unit is fully configurable using a wireless handheld terminal (TLU) or optionally via HART giving true flexibility to the installer. Parameters such as relay operation and alarm levels are all set via the TLU, hazardous area approved handheld unit.

Electrical Classification
II 2 G Ex d IIC T6 Gb (-40°C to +65°C)

Safety Approvals
ATEX
SIL
