| Specialty
Harnesses |
|
FP700/3DTV84 |
 |
Traffic
Vest Harness |
| Part
# |
Classification |
D-Rings |
Leg
Connectors |
| FP700/3DTV84 |
A,
P |
B,
S |
Pass-through |
Sizing:
Small, Medium, Large or Extra Large
|
|
Where
maximum visibility is required, North has combined a lightweight, mesh
traffic vest with the trusted FP700/3D nylon harness. This combination
provides Arkobrite II 3-D reflective tape (front and back) on fluorescent
orange body vest for optimum visibility. |
|
 |
|
Comfort
Harness |
 |
Part
# |
Classification |
D-Rings |
Leg
Connectors |
| FP706/3ED |
A, D, L |
B, L |
Pass-through |
Sizing:
Small, Medium, Large or Extra Large
|

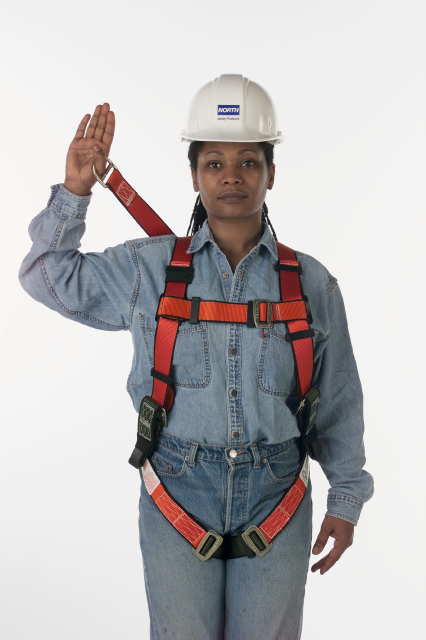

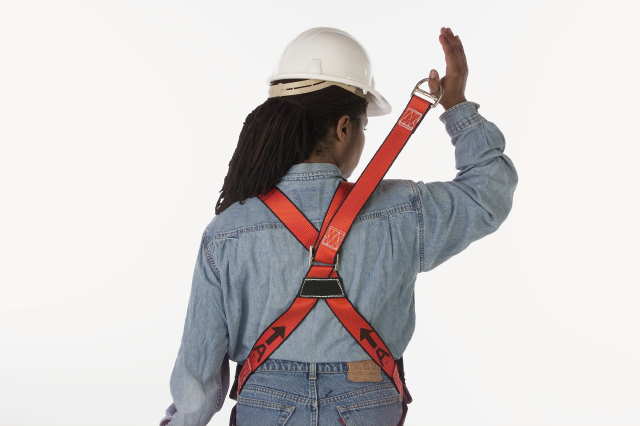

Constructed
with a unique back D-Ring, the FP706 allows shoulder webbing to move
freely through the D-Ring to increase comfort and mobility significantly.
Added features include adjustable chest strap, D-Ring extender and sternal
loop. Ideally suited for jobs where the hands are at shoulder height
or higher for long periods of time.
|
| |
 |
|
Flame
Resistant Harness |
|
Part
# |
Classification |
D-Rings |
Leg
Connectors |
|
FP759/1DK |
A |
B |
Pass-through |
|
FP759/1DKXL |
A |
B |
Pass-through |
|
FP759/1DGK |
A |
B |
Grommeted |
|
FP759/1DGKXL |
A |
B |
Grommeted |
FP759/1DGK |
|
FP759/5DK |
A,
P, C |
B,
S, E |
Pass-through |
| |
|
FP759/5DKXL |
A,
P, C |
B,
S, E |
Pass-through |
| |
|
FP759/5DGK |
A,
P, C |
B,
S, E |
Grommeted |
| |
|
FP759/5DGKXL |
A,
P, C |
B,
S, E |
Grommeted |
| |
|
Sizing:
Universal Fit and Extra Large
|
| |
|

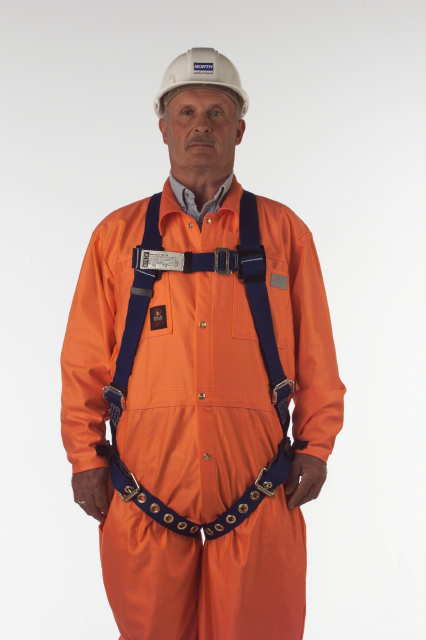

The
Flame Resistant Harness is made of a blend of Kevlar and Nomex. Nomex
provides a flame resistant jacket to the high strength, heat resistant
Kevlar core. The Yellow Kevlar yarn is highly visible against the blue
Nomex outer jacket making inspection easy. |
| |
|
| |
| |
|
Hi-Viv
Harnesses |
| |
|
Part
# |
Classification |
D-Rings |
Leg
Connectors |
| |
|
FP759/1DPHV |
A |
B |
Pass-through |
| FP759/1DPHVXL |
A |
B |
Pass-through |
| FP759/1DGPHV |
A |
B |
Grommeted |
| FP759/1DGPHVXL |
A |
B |
Grommeted |
| FP759/5DPHV |
A,
P, C |
B, S, E |
Pass-through |
| FP759/5DPHVXL |
A,
P, C |
B, S, E |
Pass-through |
| |
|
FP759/5DGPHV |
A,
P, C |
B, S, E |
Grommeted |
| |
|
FP759/5DGPHVXL |
A,
P, C |
B, S, E |
Grommeted |
| |
|
Sizing:
Universal Fit and Extra Large
|
| |
|
Hi-Vis
is ideally suited for those applications which require the user to be
visible to operators of equipment. Constructed with fluorescent yellow
polyester webbing and reflective bands (2 and 1/4" width) these
harnesses enhance worker visibility. |
| |
|
| |
| Classification
Legend |
A
- Fall Arrest |
P
- Work positioning |
D
- Descent |
L
- Ladder climbing |
C
- Confined space |
| D-Ring
Legend |
F
- Front |
B
- Sliding back |
S
- Side or hip |
E
- Shoulder |
L
- Sternal loops or D-rings |
X
- D-Ring Extender |
|
|
|
|
|
|
|
|
