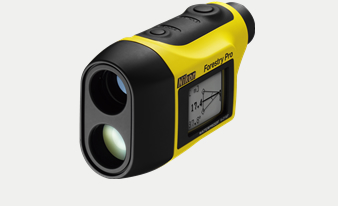

Forestry
Pro |
|
| |
|
|
| |
Descriptions |
|
|
• Measurement
range: 10-500 m/11-550 yds./33-999 ft. |
•In
addition to actual distance, horizontal distance,
height, angle and vertical separation
(difference
in height between two targets) measurement functions,
three-point measurement
(height between two points)
is available |
•The
results are displayed on both internal and external
LCD panels. The external panel
displays
all results simultaneously. |
• Target Priority Switch System
for measuring overlapping subjects:
First Target Priority
mode displays the distance of
the closest subject — useful
when measuring the distance to a subject in front of
an overlapping background.
Distant Target
Priority
mode displays that of the farthest subject — useful
in wooded areas. |
• High-quality
6x monocular with multilayer coating produces bright,
clear images |
• Long
eye relief design affords eyeglass wearers easy
viewing |
• Dioptre
adjustment function |
• Single
or continuous measurement (up to 20 seconds) |
• Waterproof
(up to 1 meter for 10 minutes) but not for underwater
usage; the battery chamber is water resistant |
• Wide
temperature tolerance: -10°C to +50°C |
| |
|
|
|
| |
Internal display |
|
|
| 1.
Actual (linear) Distance |
8.
Laser irradiation ( ) |
|
| 2.
Horizontal Distance |
9.
Battery condition |
| 3.
Height |
10.
Distant Target Priority mode |
| 4.
Height between two points |
11.
First Target Priority mode |
| 5.
Three-point measurement |
12.
Angle |
| 6. Unit of measure (m/yd.)
(No
unit displayed for ft.) |
13.
Distance |
7.
Target mark ( ) |
|
| |
|
| |
|
| |
|
| |
|
|
| |
Descriptions |
|
|
• Measurement
range: 10-500 m/11-550 yds./33-999 ft. |
•In
addition to actual distance, horizontal distance,
height, angle and vertical separation
(difference
in height between two targets) measurement functions,
three-point measurement
(height between two points)
is available |
•The
results are displayed on both internal and external
LCD panels. The external panel
displays
all results simultaneously. |
• Target Priority Switch System
for measuring overlapping subjects:
First Target Priority
mode displays the distance of
the closest subject — useful
when measuring the distance to a subject in front of
an overlapping background.
Distant Target
Priority
mode displays that of the farthest subject — useful
in wooded areas. |
• High-quality
6x monocular with multilayer coating produces bright,
clear images |
• Long
eye relief design affords eyeglass wearers easy
viewing |
• Dioptre
adjustment function |
• Single
or continuous measurement (up to 20 seconds) |
• Waterproof
(up to 1 meter for 10 minutes) but not for underwater
usage; the battery chamber is water resistant |
• Wide
temperature tolerance: -10°C to +50°C |
| |
|
|
|
| |
Internal display |
|
|
| 1.
Actual (linear) Distance |
8.
Laser irradiation () |
|
| 2.
Horizontal Distance |
9.
Battery condition |
| 3.
Height |
10.
Distant Target Priority mode |
| 4.
Height between two points |
11.
First Target Priority mode |
| 5.
Three-point measurement |
12.
Angle |
| 6. Unit of measure (m/yd.)
(No
unit displayed for ft.) |
13.
Distance |
| 7.
Target mark ( ) |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
|
|
| |
Specifications |
|
|
| |
|
|
|
| |
Measurement range |
Distance:10-500m/11-550 yds./33-999 ft.(*999
ft.: 304.5m/333 yds.)
Angle: ±89º |
| |
|
|
|
| |
Distance display (Increment) |
[Internal Display]
Act (Actual Distance):
every 0.5m/yd., 1
ft. (shorter than 100m/yds./ft.)
every 1m/yd./ft. (100m/yds./ft. and over)
Hor (Horizontal Distance) and Hgt (Height):
every 0.2m/yd., 0.5 ft. (shorter than 100m/yds./ft.)
every 1m/yd./ft. (100m/yds./ft. and over)
Ang (Angle):
every 0.1º (less than 10º)
every 1º (10º and over)
*Downward angle from the horizontal line: with display "-"
[External Display]
Act (Actual Distance):
every 0.5m/yd., 1 ft.
Hor (Horizontal Distance) and Hgt (Height):
every 0.2m/yd., 0.5 ft.
Ang (Angle):
every 0.1º
|
| |
|
|
|
| |
Finder |
Magnification (x) |
6 |
| |
Effective objective diameter (mm) |
21 |
| |
Actual
field of view (º) |
6.0 |
| |
Exit pupil (mm) |
3.5 |
| |
Eye relief (mm) |
18.2 |
| |
|
|
|
| |
Dimensions (LxHxW) (mm) |
130x69x45 |
| |
|
|
|
| |
Weight (g) (excluding battery) |
210 |
| |
|
|
|
| |
Power source |
CR2 lithium battery
x 1 (DC3V)
Auto power shutoff function equipped (after 30 sec.) |
| |
|
|
|
| |
Safety |
Class 1M Laser Product
(EN/IEC60825-1:2007) |
| |
|
|
|
| |
EMC |
FCC Part15 SubPartB
class B, EU:EMC directive, AS/NZS, VCCI class B |
| |
|
|
|
| |
Environment |
RoHS, WEEE |
| |
|
|
|
The specifications of the product may not
be achieved depending on the target object's shape, surface
texture and nature, and/or weather conditions. |
|
|
|
|
