Descriptions |
|
|
• Measurement
range: 10-915m/11-1,000 yds. |
• Active
Brightness Control Viewfinder for easy, clear viewing:
Orange LED is automatically turned on when it is
used in darker
situations and brightness of the LED
is adjusted according to the surroundings |

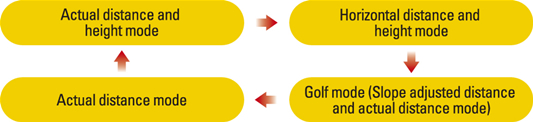

• Easy
operation enables measurement of actual distance,

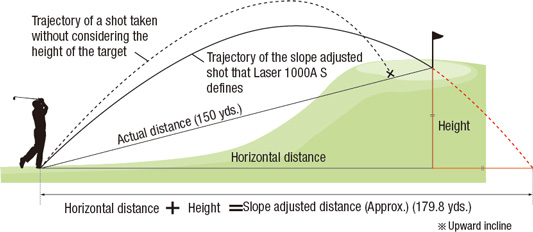

horizontal distance, height and slope adjusted distance
(horizontal distance ± height) |
• Target Priority Switch System
for measuring overlapping subjects:
First Target Priority
mode displays the distance of
the closest subject — useful
when measuring the distance to a subject in front of
an overlapping background.
Distant Target
Priority
mode displays that of the farthest subject — useful
in wooded areas. |
• High-quality
6x monocular with multilayer coating produces bright,
clear images |
• High
light transmittance for a brighter field of view |
• Large
ocular for easy viewing (18mm) |
• Wide
field of view (7.5 degrees) |
• Long
eye relief design affords eyeglass wearers easy viewing |
• Dioptre
adjustment function |
| • Single
or continuous measurement (up to 5 seconds) |
| • Compact,
lightweight design enables easy, single-hand operation |
| • Waterproof
(up to 1m/3.3 ft. for 10 minutes), but not for underwater
usage; the battery chamber is water-resistant |
| • Wide
temperature tolerance: -10°C to +50°C |
|
| |
|
|
|
| |
Internal display |
|
|
| 1.
Distance |
6.
Battery condition |
|
| 2.
Unit of measure (m/yd.) |
7.
Distant Target Priority mode |
3.
Target mark ( ) |
8.
First Target Priority mode |
4.
Laser irradiation ( ) |
9.
Decline |
5. Height (Actual distance
at
Golf mode setting) |
10.
Incline |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
|
|
| |
Specifications |
|
|
| |
|
|
|
| |
Measurement range |
10-915m/11-1,000
yds. |
| |
|
|
|
| |
Distance display (Increment) |
Actual Distance (upper
4-digit):
every 0.5m/yd. (shorter than 1,000m/yds.)
every 1m/yd. (1,000m/yds. and over)
Actual Distance (lower 3-digit):
every 1m/yd. (shorter than 1,000m/yds.)
Horizontal Distance (upper 4-digit):
every 0.2m/yd. (shorter than 1,000m/yds.)
every 1m/yd. (1,000m/yds. and over)
Height (lower 3-digit):
every 0.2m/yd. (shorter than ±100m/yds.)
every 1m/yd. (±100-999m/yds.)
Slope adjusted distance (Horizontal distance ±Height)
(upper 4-digit):
every 0.2m/yd. (shorter than 1,000m/yds.)
every 1m/yd. (1,000m/yds. and over)
|
| |
|
|
|
| |
Accuracy* (actual distance) |
±1.25m/yds. |
| |
|
|
|
| |
Finder |
Magnification (x) |
6 |
| |
Effective objective diameter (mm) |
21 |
| |
Actual
field of view (º) |
7.5 |
| |
Exit pupil (mm) |
3.5 |
| |
Eye relief (mm) |
18.2 |
| |
|
|
|
| |
Dimensions (LxHxW) (mm) |
118x73x41 |
| |
|
|
|
| |
Weight (g) (excluding battery) |
195 |
| |
|
|
|
| |
Power source |
CR2
lithium battery x 1 (DC 3V)
Auto power shutoff function equipped (after 8 sec.) |
| |
|
|
|
| |
Safety |
Class
1M Laser Product (EN/IEC60825-1) |
| |
|
|
|
| |
EMC |
FCC Part15 SubPartB
class B, EU:EMC directive, AS/NZS, VCCI class B
CU TR 020 |
| |
|
|
|
| |
Environment |
RoHS, WEEE |
| |
|
|
|
The specifications of the product may not
be achieved depending on the target object's shape, surface
texture and nature, and/or weather conditions. |
