Descriptions |
|
|
• Measurement
range: 4.5-550m /5-600 yds. |
•Horizontal
Distance display mode and Actual Distance display
mode can be easily switched – ID (incline/decline)
Technology |
•Target
Priority Switch System for measuring overlapping
subjects:
First Target Priority mode displays the distance of the
closest subject — useful when measuring the distance
to a subject in
front of an overlapping background.
Distant Target Priority mode displays that of the farthest
subject — useful in wooded areas. |
• Compact,
lightweight and ergonomic design |
• Distance
measurement display step is 0.1m/yd. |
• High-quality
6x monocular with multilayer coating for bright, clear
images |
• High
light transmittance for a brighter field of view |
• Large
ocular for easy viewing (18mm) |
• Wide
field of view (7.5 degrees) |
| • Long
eye relief design affords eyeglass wearers easy viewing |
| • Dioptre
adjustment function |
| • Single
or continuous measurement (up to 8 seconds) |
| • LED
illumination for easy viewing of the display in dark
conditions |
| • Waterproof
(up to 1m/3.3 ft. for 10 minutes), but not for underwater
usage; the battery chamber is water-resistant |
| • Wide
temperature tolerance: -10°C to +50°C |
| |
| |
|
|
|
| |

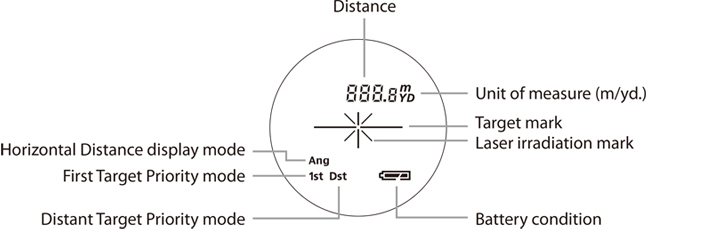

Internal display |
|
|
|
| |
|
|
| |
|
|
|
| |
Specifications |
|
|
| |
|
|
|
| |
Measurement range |
4.5-550m/5-600
yds. |
| |
|
|
|
| |
Distance display (Increment) |
|
| |
|
|
|
| |
Accuracy* (actual distance) |
±0.5m/yd. |
| |
|
|
|
| |
Finder |
Magnification (x) |
6 |
| |
Effective objective diameter (mm) |
21 |
| |
Actual
field of view (º) |
7.5 |
| |
Exit pupil (mm) |
3.5 |
| |
Eye relief (mm) |
18.3 |
| |
|
|
|
| |
Dimensions (LxHxW) (mm) |
113x70x39 |
| |
|
|
|
| |
Weight (g) (excluding battery) |
175 |
| |
|
|
|
| |
Power source |
CR2
lithium battery x 1 (DC 3V)
Auto power shutoff function equipped (after 8 sec.) |
| |
|
|
|
| |
Laser
classification |
IEC60825-1:
Class 1M/Laser Product
FDA/21 CFR Part 1040.10: Class I Laser Product |
| |
|
|
|
| |
Electromagnetic
compatibility |
FCC
Part15 SubPartB class B, EU: EMC directive, AS/NZS,
VCCI classB, CU TR 020 |
| |
|
|
|
| |
Environment |
RoHS, WEEE |
| |
|
|
|
The specifications of the product may not
be achieved depending on the target object's shape, surface
texture and nature, and/or weather conditions. |
