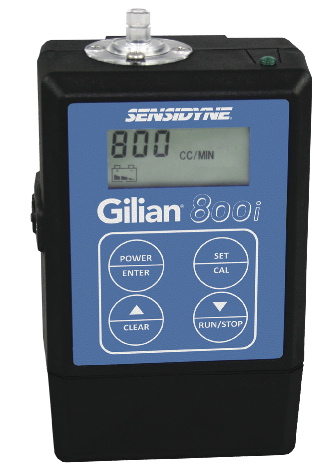

Gilian
800i Low Flow Air Sampling Pump |
| |
|
• Ideal
for EPA VOC’s
Monitoring
Back pressure and flow range well suited for EPA method
monitoring of volatile organic compounds.
• NiMH Memory-Free Battery
NiMH battery with quick-charge time in under 4 hours.
Eliminates
shipping and disposal issues.
• Programmable Functionality
• Four stage program with repeat cycling
• Allows
scheduled sampling or intermittent duty cycles
• Programmable
delayed start
• EN 1232 Compliant
Meets European EN 1232 requirements for Type-G personalized
sampling pump performance in workplace environments.
• Intuitive Operation with Lock-out Feature
Simple four-button design makes pump easier to understand
and operate. |
|
• Live
Flow Display
Large display continuously shows real-time flow, total
sample
time and total volume sampled. Special flow
control circuitry
automatically compensates for changes
in flow rate, pressure
and temperature.
• Intrinsically Safe Certified
Certified Intrinsically Safe for use in explosive environments. |
Product
Specifications |
| |
PERFORMANCE
|
| Flow Range |
200 - 800 cc/min |
|
|
| Constant Flow Control |
± 5% of set flow at 200-800
cc/min |
|
|
| Flow Compensation |
200cc up to 74” H20 back
pressure
400cc up to 70” H20 back pressure
600cc
up to 70” H20 back pressure
800cc up to 70” H20
back pressure |
|
|
| Run Time |
8 hour minimum |
|
|
| Flow Fault |
If flow changes exceed 5% within
back pressure specifications, fault icon appears. If
fault exceeds 30 seconds, pump shuts down. Pump attempts
to restart every 3 minutes for up to 1 hour. |
| |
|
|
|
| ENVIRONMENTAL |
|
|
|
| Temperature Ranges |
|
|
|
Operating |
32°F to 113°F (0°C to 45°C) |
|
|
Storage |
-4°F to 113°F (-20°C to 45°C) |
|
|
Charging |
41°F to 104°F (5°C to 40°C) |
|
|
Humidity Ranges |
|
|
|
Operating |
5-85 %RH, non-condensing |
|
|
Storage |
5-98 %RH, non-condensing |
|
|
| |
|
|
|
GENERAL |
|
|
|
Display |
Flow Rate, Total Sample Time, Total Volume Sampled |
Controls |
POWER/ENTER,
SET/CAL, ‹/CLEAR, ›/RUN/STOP |
Indicators |
Green LED (“Normal Operation”) |
|
|
Icons (LCD) |
Battery Indicator, Hold, Fault, Set, Prog |
|
|
Dimensions |
3.2W x 5.4H x 2.3D inches
8.2W x 13.7H x 5.8D cm |
|
|
Weight |
20.5 oz. (580 g) |
|
|
| |
|
|
|
ELECTRICAL |
|
|
|
Battery Pack |
Removable, Rechargeable Nickel-Metal-Hydride |
Battery Level Indicator |
Icon displays
Full, Mid, & Low
levels |
|
|
Interface Connectors |
Charging Jack |
|
|
Charging Time |
Under 4 hours |
|
|
| |
|
|
|
APPROVALS/PERFORMANCE |
EN 1232 |
Type G |
|
|
Intrinsic Safety |
Class I, Div 1 Groups A, B, C, D;
Class II, Div 1,
Groups E, F & G;
Class III, T4 |
|
|
ATEX |
II 1 G Ex ia IIC T4 |
|
|
CE |
|
|
|
Applicable Directives |
ATEX 94/9/EC
EMC 2004/108/EC (RFI)
LVD 2006/95/EC |
|
|
| |
|
|
|
| Gilian 800i Pump
Starter Kit, with Charger (100-240VAC, 50/60Hz), US
Cord .........910-1301-01 |
| |
|
|
|
